超簡單安裝nextcloud共筆功能collabora online Part II (v 2.4.17 )

2022-11-29 william 其他

我以前文章「超簡單安裝collabora online」敘述如何讓nextcloud搭配online document server達到線上編輯功能；後來發現Onlyoffice 更好用，版面格式比較不會跑掉，就變心改用onlyoffice。

隨著公司越來越多人使用onlyoffice ，沒想到onlyoffice免費版有10人開啟檔案的上限，預算考量，只能另想辦法。

我回過頭來看collabora online ，雖是免費，但官方編譯一樣有20人數限制；照這樣子應該真的要去拍桌，跟老闆說要加錢購買onlyoffice。

可是偶然間發現有個群組，協助編譯開源版collabora online，並且解除20人限制，甚至編譯成 docker 版本，真是佛心來的。

以下請參考github與docker網站：

https://github.com/tiredofit/docker-collabora-online

https://hub.docker.com/r/tiredofit/collabora-online/tags

官方文件很少。但不囉嗦，我測試後直接寫如何安裝。

compose 文件

wget https://github.com/tiredofit/docker-collabora-online/raw/master/examples/docker-compose.yml
mv docker-compose.yml.traefik docker-compose.yml
vi docker-compose.yml

#改成醬
#紅色字需要修改
version: '3.7'
services:

  collabora-online-app:
    image: tiredofit/collabora-online:2.4.17
    container_name: collabora-online-app
    hostname: collabora-online.test.com
    expose:
      - 9980
    ports:
      - "9980:9980"
    cap_add:
      - MKNOD
      - NET_ADMIN
    privileged: true
    labels:
      - traefik.enable=true
      - traefik.frontend.rule=Host:collabora-online.test.com
      - traefik.port=9980
      - traefik.protocol=http
      - traefik.docker.network=proxy
      - traefik.backend=collabora-online-app
    volumes:
      - ./logs:/logs
    environment:
      - CONTAINER_NAME=collabora-online-app

      - ADMIN_USER=admin
      - ADMIN_PASS=collabora-online

# 允許哪些網站存取
      - ALLOWED_HOSTS=cloud.test.com,xxx.test.com

      - ENABLE_TLS=FALSE
      - ENABLE_TLS_REVERSE_PROXY=TRUE
    restart: always
#2023/6/14
#2.4.17這版本pdf下載會出問題，因此更換2.4.34版，但是無法啟用成功，出現：
#ERROR: Cannot create container for service collabora-online-app: Conflict
#若要換新版本,需docker-compose down; docker rm collabora-online;
#修改yml檔案，改成新的版本號碼2.4.34後，再重新docker-compose up -d才能執行成功

反向代理(apache 2)
以下主機名稱需與compose文件相同

<VirtualHost *:443>
  ServerName collabora-online.test.com:443

  # SSL configuration, you may want to take the easy route instead and use Lets Encrypt!
  SSLCertificateFile /etc/letsencrypt/live/collabora-online.test.com/cert.pem
  SSLCertificateKeyFile /etc/letsencrypt/live/collabora-online.test.com/privkey.pem
  SSLCACertificateFile /etc/letsencrypt/live/collabora-online.test.com/fullchain.pem
  SSLProtocol             all -SSLv2 -SSLv3
  SSLEngine on
  SSLHonorCipherOrder     on
  AllowEncodedSlashes NoDecode
  ProxyPreserveHost On


 # static html, js, images, etc. served from coolwsd
 # browser is the client part of Collabora Online
 ProxyPass           /browser http://127.0.0.1:9980/browser retry=0
 ProxyPassReverse    /browser http://127.0.0.1:9980/browser


 # WOPI discovery URL
 ProxyPass           /hosting/discovery http://127.0.0.1:9980/hosting/discovery retry=0
 ProxyPassReverse    /hosting/discovery http://127.0.0.1:9980/hosting/discovery


 # Capabilities
 ProxyPass           /hosting/capabilities http://127.0.0.1:9980/hosting/capabilities retry=0
 ProxyPassReverse    /hosting/capabilities http://127.0.0.1:9980/hosting/capabilities


 # Main websocket
 ProxyPassMatch      "/cool/(.*)/ws$"      ws://127.0.0.1:9980/cool/$1/ws nocanon


 # Admin Console websocket
 ProxyPass           /cool/adminws ws://127.0.0.1:9980/cool/adminws


 # Download as, Fullscreen presentation and Image upload operations
 ProxyPass           /cool http://127.0.0.1:9980/cool
 ProxyPassReverse    /cool http://127.0.0.1:9980/cool
 # Compatibility with integrations that use the /lool/convert-to endpoint
 ProxyPass           /lool http://127.0.0.1:9980/cool
 ProxyPassReverse    /lool http://127.0.0.1:9980/cool
</VirtualHost>

反向代理(nginx)

server {
 listen       443 ssl;
 server_name  collaboraonline.example.com;


 ssl_certificate /path/to/certificate;
 ssl_certificate_key /path/to/key;


 # static files
 location ^~ /browser {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Host $http_host;
 }


 # WOPI discovery URL
 location ^~ /hosting/discovery {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Host $http_host;
 }


 # Capabilities
 location ^~ /hosting/capabilities {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Host $http_host;
 }


 # main websocket
 location ~ ^/cool/(.*)/ws$ {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Upgrade $http_upgrade;
   proxy_set_header Connection "Upgrade";
   proxy_set_header Host $http_host;
   proxy_read_timeout 36000s;
 }


 # download, presentation and image upload
 location ~ ^/(c|l)ool {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Host $http_host;
 }


 # Admin Console websocket
 location ^~ /cool/adminws {
   proxy_pass http://127.0.0.1:9980;
   proxy_set_header Upgrade $http_upgrade;
   proxy_set_header Connection "Upgrade";
   proxy_set_header Host $http_host;
   proxy_read_timeout 36000s;
 }
}

nextcloud 設定
要安裝Collabora Online

設定URL，以後開檔案將導入到 Collabora Online-server 達到線上作業功能

完成了

檢查運行狀況
需輸入compose上面的管理者帳號與密碼

https://collabora-online.test.com/browser/dist/admin/admin.html

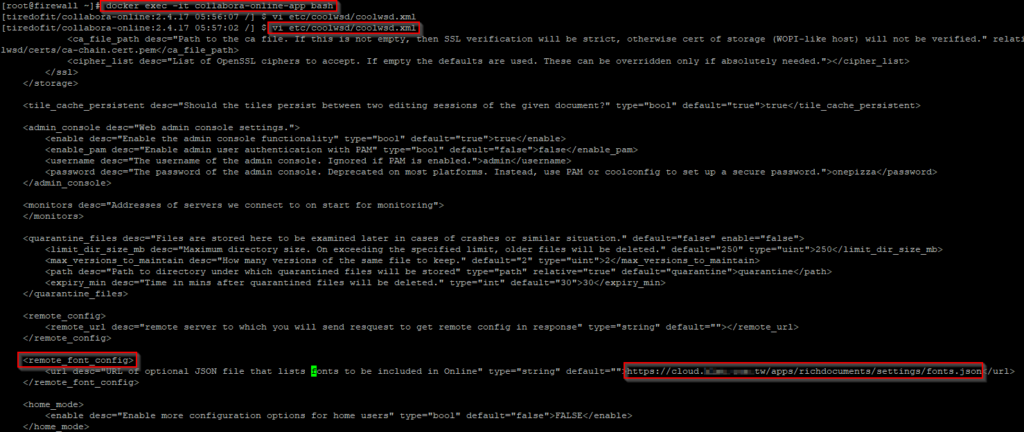

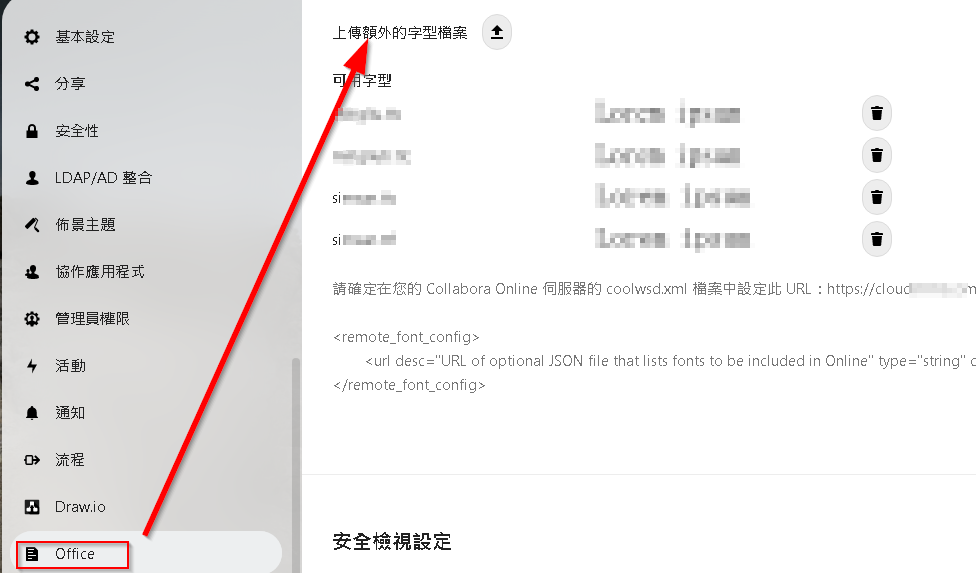

上傳字型，需要登入到容器，加上額外字型的設定

docker exec -it <容器名稱> bash
vi etc/coolwsd/coolwsd.xml
<remote_font_config>
  <url desc="URL of optional JSON file that lists fonts to be included in Online" type="string" default="">https://cloud.test.com/apps/richdocuments/settings/fonts.json</url>
</remote_font_config>

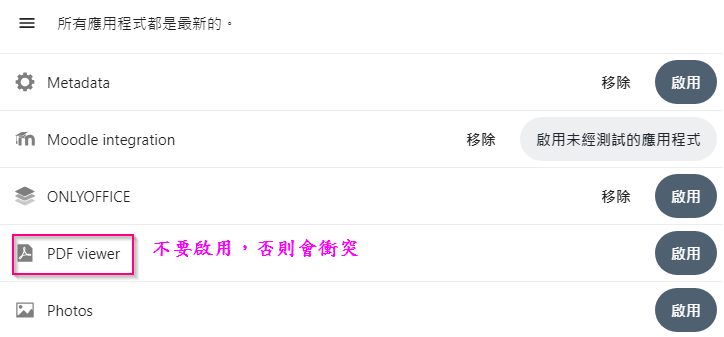

若nextcloud安裝pdf viewer 請停用，否則會衝突

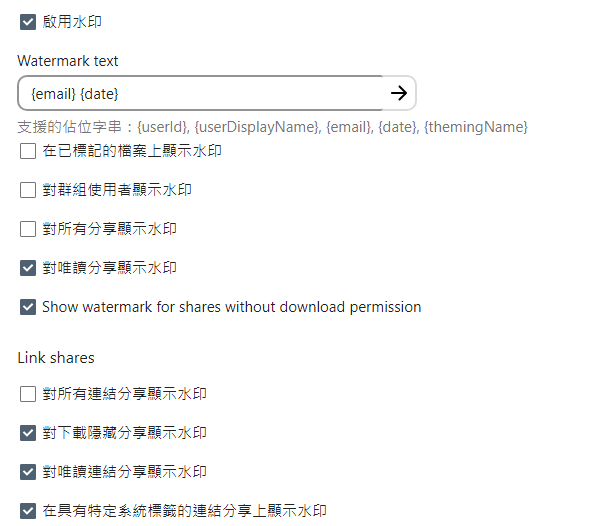

唯讀請設定浮水印
這很重要，若公司被稽核，稽核員通常要求只能線上看ISO文件、程序書，且考慮版本無法管控，預設不可以下載

另外要設定安全機制WOPI，一樣是修改 coolwsd，只允許相關ip才能存取

docker exec -it <容器名稱> bash
vi etc/coolwsd/coolwsd.xml
#########################################################
<alias_groups desc="xxxxxx" mode="groups">
  <group><host desc="hostname to allow or deny." allow="true">192.168.1.1</host></group>
  <group><host desc="hostname to allow or deny." allow="true">cloud.test.com</host></group>
</alias_groups>
